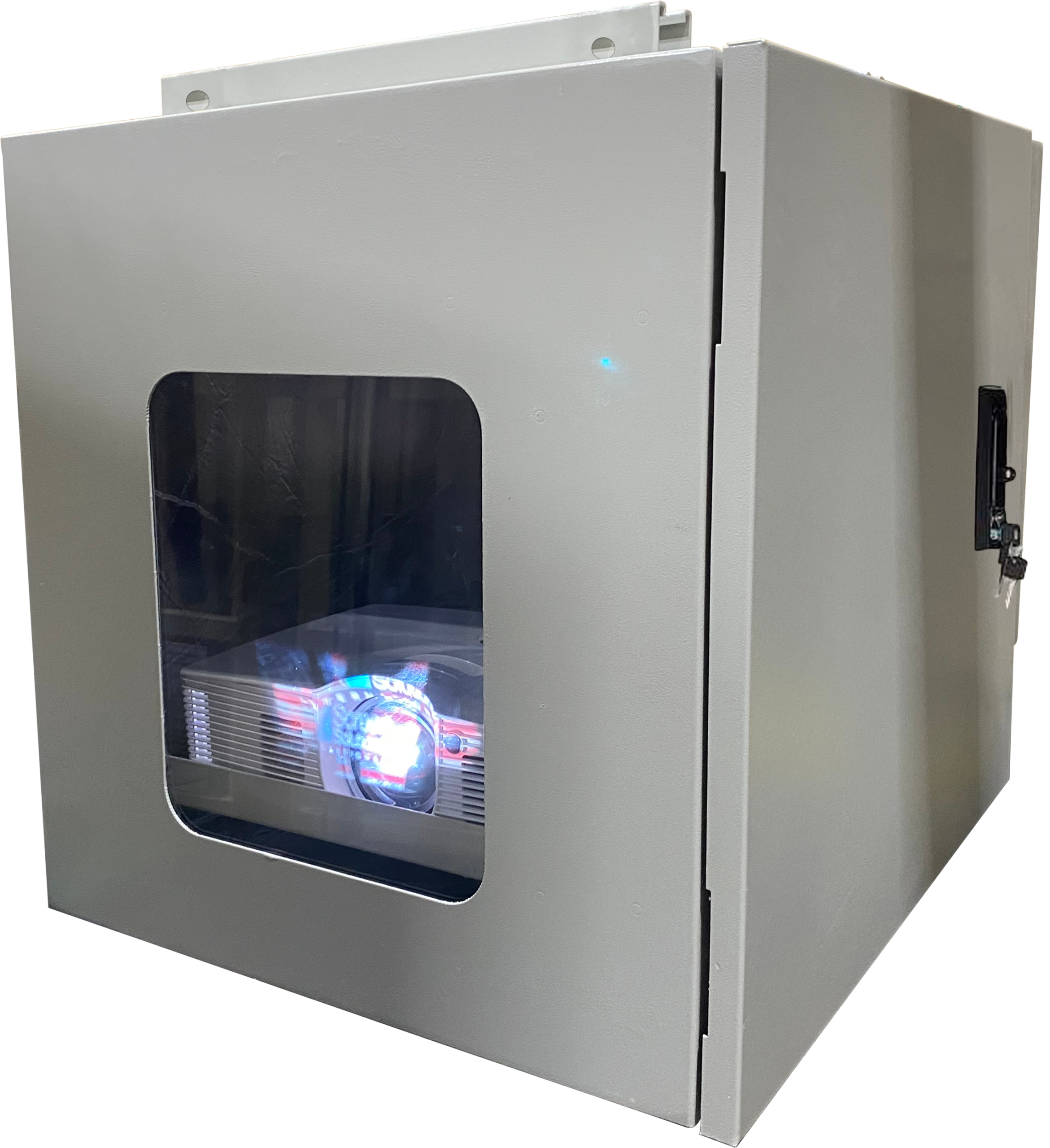

Defender Series Enclosures are fully climate controlled and insulated. Taking care of hot, cold and humid environments, all in a closed loop sealed projector enclosure.
With a wide range of standard sizes and standard features, the Defender Series enclosures can take on project-specific projection requirements from 5,000 Lumens to 50,000 Lumens across varied installation regions.
Screen Solutions International has provided projector protection systems worldwide. SSI product design with premium materials for project-specific use.

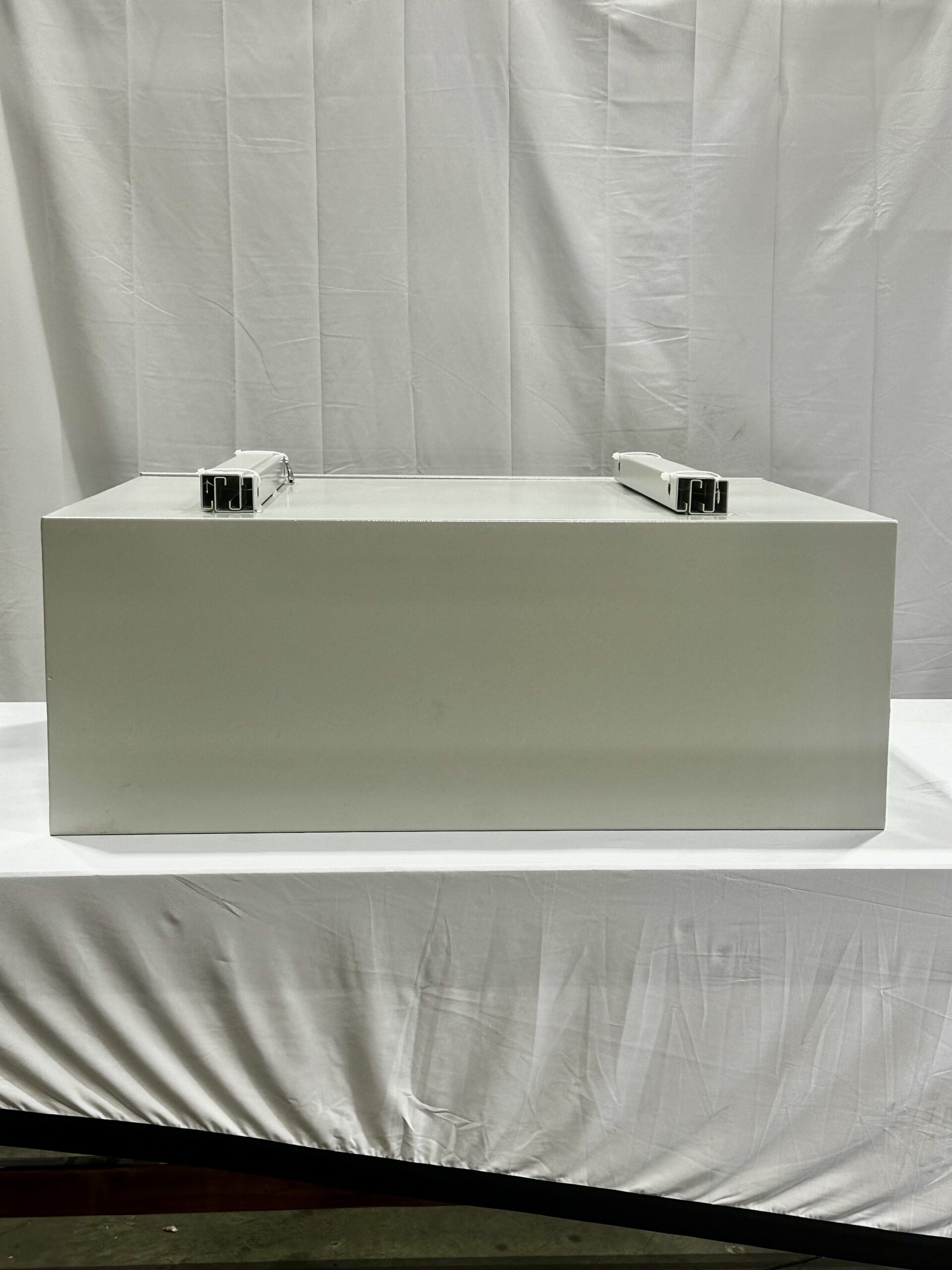

Top & bottom Unistrut mounting makes installation simple and secure. Bottom Unistrut is removable, top is permanent.

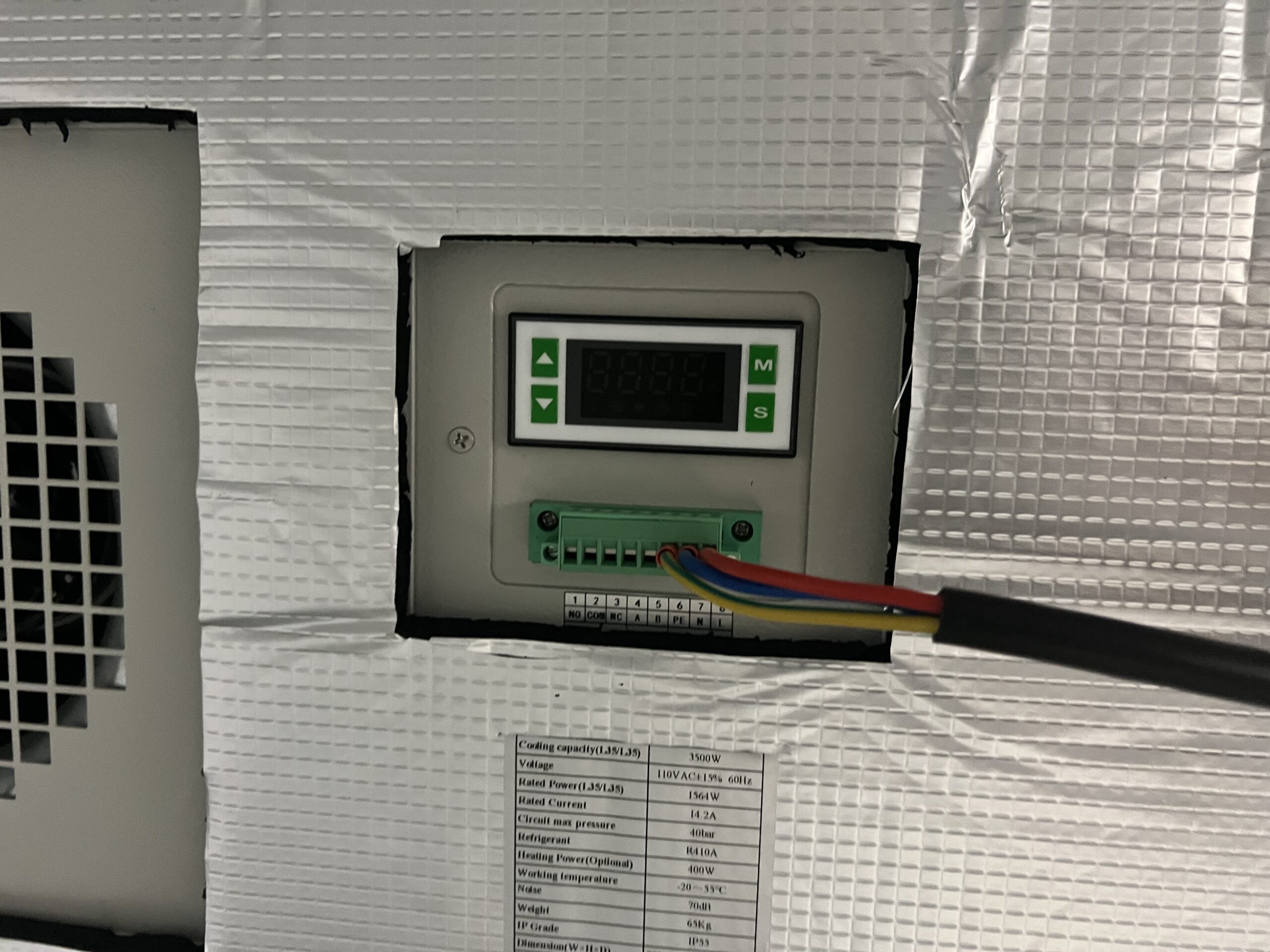

Integrated heating, cooling and evaporation with thermostat control for regulated enclosure temperature management.

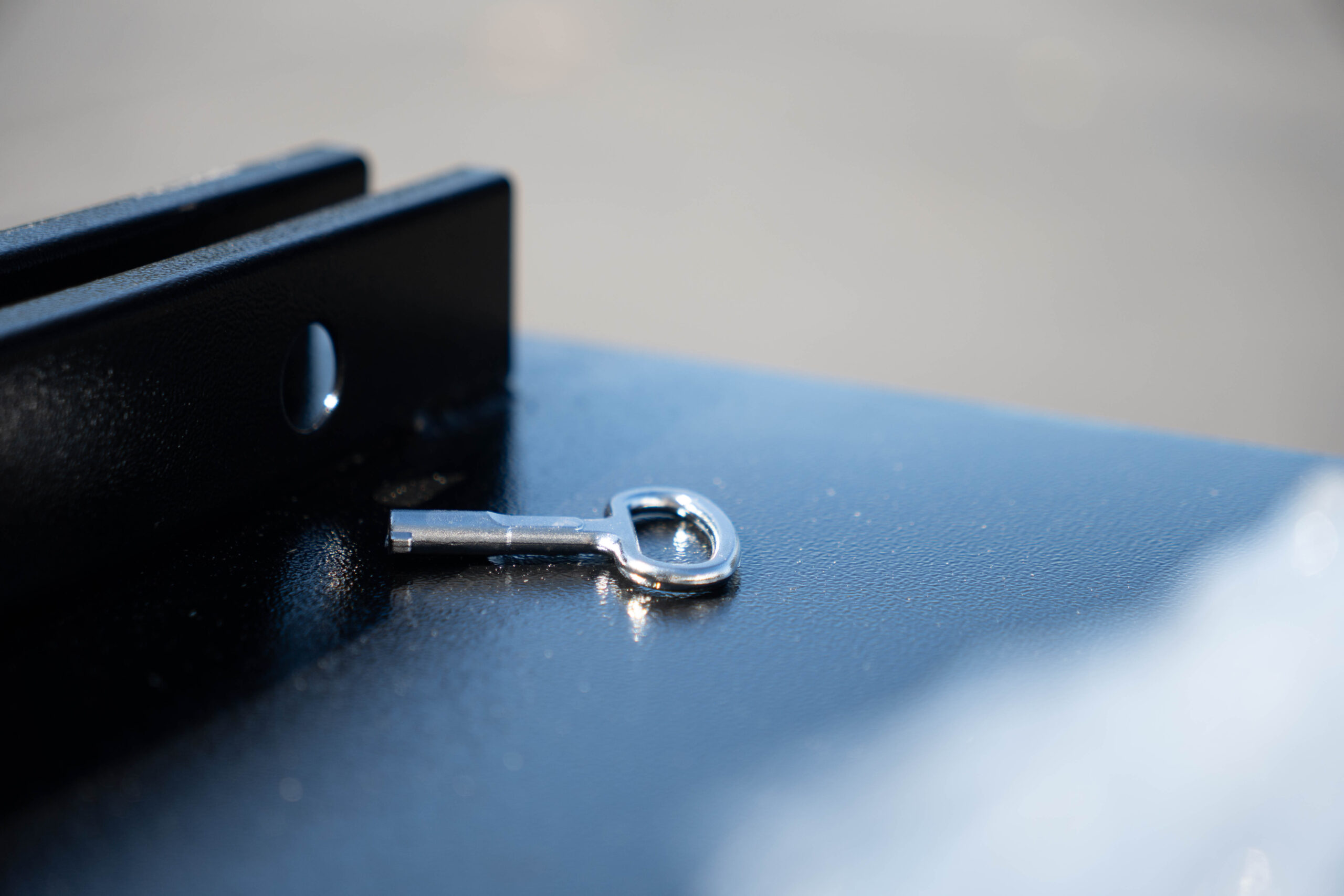

Vandal-resistance design with protective lock to secure your equipment. Lock designs vary by size.

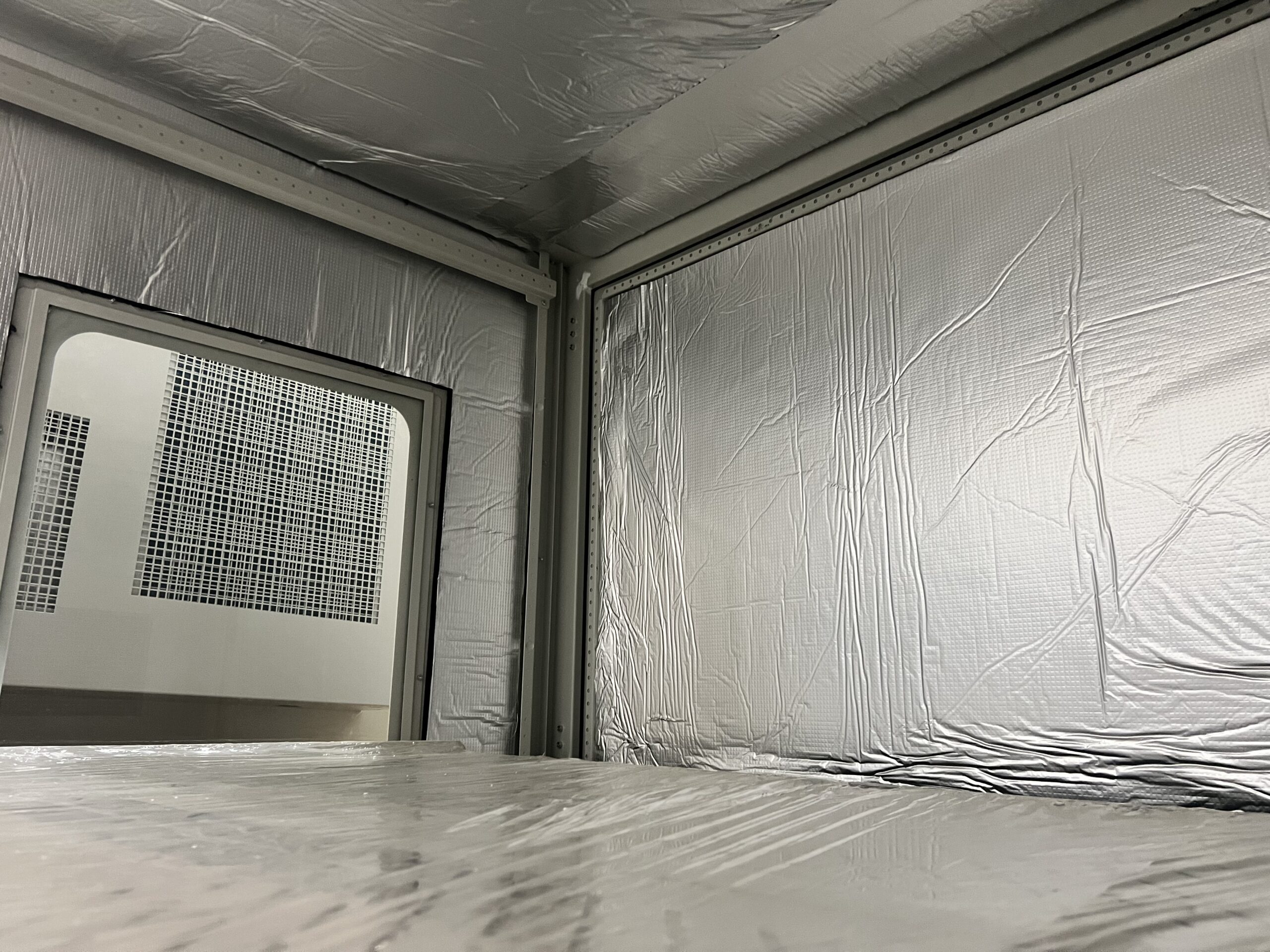

High-efficiency insulation for maximum thermal performance and energy efficiency.
| Model | Small ENC-CC-SM | Medium ENC-CC-MD | Large ENC-CC-LG | Large + ENC-CC-LG+ | Extra Large ENC-CC-XL |
|---|---|---|---|---|---|
| Dimensions (LxWxH) | 21.65" × 22.42" × 25.57" | 39.21" × 27.15" × 28.83" | 54.17" × 35.24" × 33.44" | 62.64" × 47.56" × 41.83" | 75.25" × 53.25" × 46.25" |
| Power Draw* | 110V 5 amps | 110V 10 amps | 110V 15 amps | 110V 15 amps | 220V 15 amps |
| Weight | 130 lbs | 210 lbs | 230 lbs | 560 lbs | 802 lbs |
| Door Opening (HxW) | 15.32" × 18.15" | 21.24" × 26.14" | 26.02" × 41.10" | 34.38" × 55.75" | 56" × 43.25" |
| Shipping Dimensions (LxWxH) |
33" × 26" × 30" (50 lbs crate) 180 lbs crated |
43" × 33" × 35" (60 lbs crate) 270 lbs crated |
58" × 40" × 39" (90 lbs crate) 320 lbs crated |
72" × 48" × 48" (141 lbs crate) 701 lbs crated |
79" × 52" × 55" (100 lbs crate) 902 lbs crated |
| Recommended Operating Temperature | -4°F to 131°F | ||||
| Material | Metal with powdercoat finish. White is the standard color. Custom colors available. | ||||
| IP Rating | IP65 Equivalent | ||||
*Power draw does not account for the internal outlets.
Projector protection for sporting venues, concourses, fan zones, and event production.
Reliable enclosures for classrooms, lecture halls, auditoriums, gymnasiums, and campuses.
Climate-controlled protection for sanctuaries, auditoriums, campuses, and live worship environments.
Protected projection for galleries, immersive installations, exhibits, and visitor attractions.
Projector enclosure planning for patios, resorts, theaters, parks, and outdoor venues.
Professional projector protection for exhibits, activations, conventions, and temporary installations.
Protects your investment from heat, cold, moisture, dust, theft, and environmental damage.
Supports temperature management for projector installations within model-specific operating requirements.
Heavy-duty steel construction with powdercoat finish built for the toughest conditions.
Dedicated team ready to help with design, installation, and ongoing support.
